Backup and Disaster Recovery

Introduction

This document outlines strategies for backup, recovery and DR, as it pertains to the ESP server application. These suggestions can be implemented to achieve highly available (HA) infrastructure as well as help inform decisions when performing risk analysis related to your own internal business continuity (BC) guidelines and policies.

Risk Analysis

Determining the correct level of redundancy, HA, and backups should be defined by internal IT/DevOps/Business policies and processes to determine RTO (Recovery Time Objective) and RPO (Recovery Point Objective) values to meet any organizational defined SLO (Service Level Objective). One possible decision factor is the cost of implementing redundancy or HA versus lost revenue, reputation, and internal staff time associated with downtime.

Backup

Recommendations and examples

Always back up the database first, followed by the shared data volume (/opt/l7esp/data). The reason is explained in How the database and the data volume relate below: the data volume is effectively append-only, so a data volume copy taken after the database copy contains every file the database copy references. A data volume copy taken before the database copy does not, and restoring that pair produces database records that point at files that do not exist.

At minimum L7 recommends whether performing a “hot” or “cold” backup:

• Keep copies of each deployment bundle that you deploy, since these contain information about the version of the software, as well as the configuration that was applied.

• Using pg_dump --format="c" for PostgreSQL database backups so you may be able to restore the backups with the pg_restore command. If you prefer to create backups in a different format with the pg_dump command, note that you will likely have to pipe the backup file into the psql PostgreSQL command-line utility to perform a restore.

• If the data volume exists outside of the default location (e.g. NFS/EFS mount) this should be backed up as well.

• Backup the deployed installation tarball to be able to reinstall if required.

One example of a backup strategy is to first backup the database to the shared data volume, then perform a backup of the data volume which will always result in atomic backups.

An option for AWS provisioned environments is the use of a managed service such as AWS Backup, which offers the following features:

• Centralized backup management

• Policy-based backup solution

• Tag-based backup policies

• Automated backup scheduling

• Automated retention management

• Backup activity monitoring

• Lifecycle management policies

• Incremental backups

• Backup data encryption

• Backup access policies

• Amazon EC2 instance backups

• Item-level recovery for Amazon EFS

• Cross-region backup

• Cross-account backup

One thing to keep in mind when utilizing a managed service to perform a “hot backup” is that the database backup (e.g. an RDS or Azure Database for PostgreSQL snapshot) must occur before the data volume backup (e.g. an EBS, EFS, Azure Files or NFS snapshot) to provide a valid restore point.

It is also highly recommended to regularly audit and test your backup/restore strategy to ensure it can be performed successfully as well as complies with any organizational policies and regulatory controls.

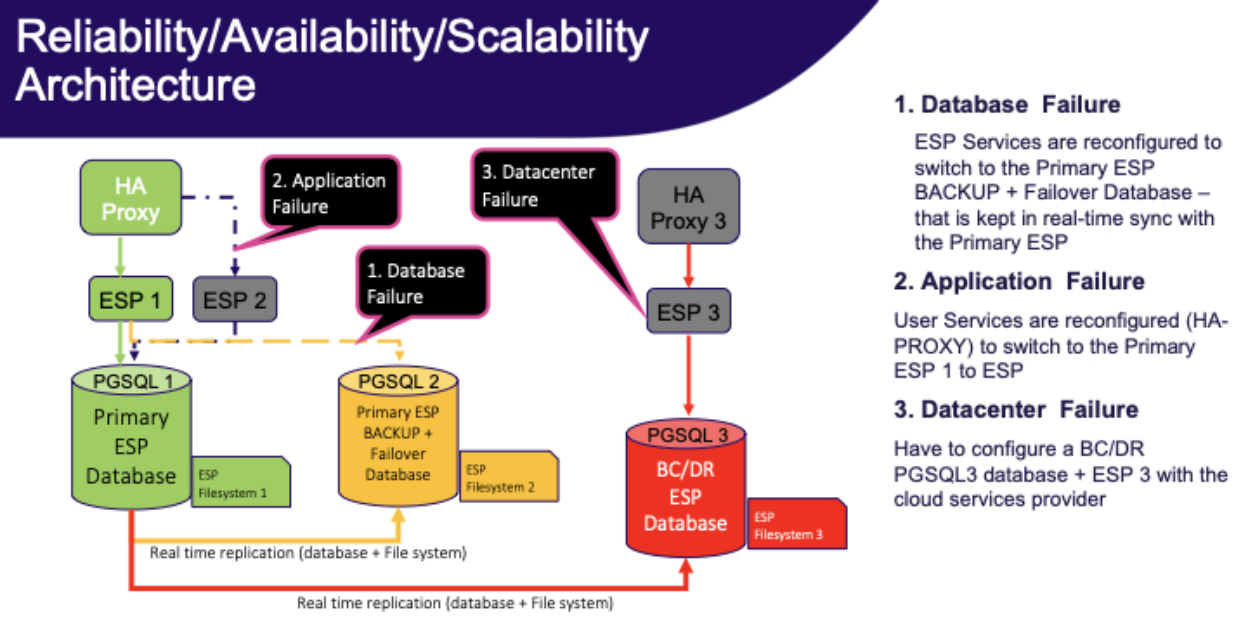

Common disaster-recovery instance requirements

• The disaster-recovery installation must have the same product version and patch level as the production installation.

• If any configuration or file changes (such as applying patches) are made to the production instance, the same changes must be repeated on the disaster-recovery instance.

• As the production system is used, all data changes must be replicated to the disaster-recovery instance. These changes can be database changes or file system changes, depending on the product in use.

• Replicating data changes imposes additional demands on the resources in the production system. To keep these demands to a minimum, the replication schedule should be carefully considered. If continuous replication is needed, the production system must be given additional resources (CPU and memory) to reduce the performance impact.

Restore

How the database and the data volume relate

The database holds every record, including each file’s path on disk. The data volume (/opt/l7esp/data, on whatever storage backs it) holds the files themselves, under files/ and pipeline/. L7|ESP only ever adds to the volume: deletes are soft, and nothing removes bytes.

• A file on the volume with no record is harmless. It is unreachable through L7|ESP.

• A record whose file is missing is a real problem: it is visible in L7|ESP and downloading it fails. It means the database is newer than the volume.

Important

The database point in time must be at or before the data volume point in time.

That is why the database is backed up first and the volume second, and why a restore must not leave the database newer than the volume.

Restore scenarios

Database lost, volume intact. The usual case with a managed database. Restore the database to the latest point available and do not touch the volume. Anything added between the restore point and the failure is now an orphan on the volume, which is harmless.

Volume lost, and every record must have its file. Restore the volume from the newest snapshot, then restore the database to a point at or before that snapshot’s timestamp. Everything after the snapshot is lost from both stores, so the volume’s snapshot interval is the loss window for the whole system in this case.

Volume lost, and the process data matters more than the files. Restore the volume from the newest snapshot and leave the database at its latest point. Samples, workflow steps and audit entries from the gap are preserved. Downloads of files created in the gap fail. This is a deliberate exception to the rule above; the reconciliation below lists exactly which files are missing.

Reconciling the database and the data volume

After any restore, check whether the database and the volume agree. esp-data-reconcile in /opt/l7esp/server/bin (L7|ESP 2026.1 and later) does this. It only reads. Inside the container it needs no arguments:

esp-data-reconcile --help

On an older release, fetch the same file from this site into the container’s bin directory once; it only needs the click and psycopg2 packages, which every L7|ESP release already includes, so this works on air-gapped installs:

curl --fail --silent --show-error --output /opt/l7esp/server/bin/esp-data-reconcile \
    https://cdn.l7esp.com/docs/sdk/2027.1/_static/esp-data-reconcile
chmod +x /opt/l7esp/server/bin/esp-data-reconcile

The shebang names /usr/local/bin/python, the interpreter that carries L7|ESP’s own packages in every image from 3.3 on. The 3.2 image installed Python from Debian instead, so on 3.2 only, run it as:

/usr/bin/python3 /opt/l7esp/server/bin/esp-data-reconcile --help

Files with no database record (orphans). Every file under files/ whose uuid is not in the database, and every run directory under pipeline/ not referenced by a pipeline instance:

esp-data-reconcile orphans --output orphans.tsv

Quarantine orphans (move them to a dated directory outside files/) rather than delete them. A user may want the original back.

Database records with no file (dangling references). Every file record and pipeline instance whose recorded path does not exist on the volume. Soft-deleted records are skipped unless --include-archived is given:

esp-data-reconcile dangling --output dangling.tsv

Both commands accept --scope files or --scope pipeline to limit the report to one directory. Exit status is 0 for nothing found, 1 for something found, 2 for a bad invocation, and 3 when the report could not run (for example, an unreachable database), so a runbook can tell a finding from a failure.

If the consistency rule was followed, dangling reports nothing. If it reports records, the database is newer than the volume: use an older database or a newer volume, or, in the third scenario above, this is the list of what is missing.

Run this before reopening the system to users, and keep the reports with the incident record.

Source of esp-data-reconcile (also available for download)

#!/usr/local/bin/python
# /// script
# requires-python = ">=3.9"
# dependencies = [
#     "click",
#     "psycopg2-binary",
# ]
# ///
"""Reconcile the L7|ESP database against the data volume after a restore.

Two reports, both read-only:

\b
  orphans   files and pipeline run directories on the data volume
            with no record in the database
  dangling  database records whose file or pipeline run directory
            is missing from the data volume

Neither command modifies the database or the data volume. Quarantining or
recovering files is a separate, deliberate step.

Inside an L7|ESP container this runs with no arguments: the data directory
comes from LAB7DATA and the database connection from L7ESP_DATABASE_URL or
the libpq PG* environment variables. Elsewhere, pass --data-dir and
--database-url (or set DATABASE_URL).

Exit codes distinguish the three outcomes a runbook has to tell apart:

\b
  0  the report ran and found nothing
  1  the report ran and found something
  2  the invocation was wrong, e.g. a --data-dir that is not a data volume
  3  the report could not run, e.g. an unreachable database
"""

from contextlib import contextmanager
from datetime import datetime
from datetime import timezone
from os import environ
from os import lstat
from os import scandir
from os.path import normpath
from pathlib import Path
from re import IGNORECASE
from re import compile as compile_re
from sys import exit as sys_exit
from typing import Any
from typing import Iterable
from typing import Iterator
from typing import List
from typing import NamedTuple
from typing import Optional
from typing import Set
from typing import Tuple

from click import Choice
from click import ClickException
from click import Path as PathType
from click import UsageError
from click import echo
from click import group
from click import option
from psycopg2 import Error as PsycopgError
from psycopg2 import connect
from psycopg2.extensions import ISOLATION_LEVEL_REPEATABLE_READ

Row = Tuple[str, str, str]

UUID_SUFFIX = compile_re(r"\.([0-9a-f]{8}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{12})$", IGNORECASE)

FILE_RECORDS_SQL = """
SELECT r.uuid::text, r.name, f.file_url, r.archived
FROM resource r
JOIN lab7_file f ON f.lab7_file_id = r.resource_id
"""

PIPELINE_RUNS_SQL = """
SELECT r.uuid::text, r.name, r.meta->>'pi_dir', r.archived
FROM resource r
JOIN task_instance t ON t.instance_id = r.resource_id
WHERE r.meta ? 'pi_dir'
"""

# L7|ESP writes this file into the data directory when it first creates the
# database tables: a uuid4 plus a newline, mode 0444. Its presence is what
# separates an initialized data volume from an empty directory or a wrong path.
SITE_ID_FILE = "site_id.txt"


class CheckAborted(ClickException):
    """The report could not be produced, so its result carries no information.

    Distinct from finding nothing, which is a real answer. Exits 3 so a runbook
    never reads a failed connection or an unreadable volume as a clean bill of
    health, and never reads it as a finding either.
    """

    exit_code = 3


class DanglingReport(NamedTuple):
    """Missing-path rows, plus counts of the records that could not be checked."""

    rows: List[Row]
    pathless: int


# --- Environment defaults ---


def default_data_dir() -> Path:
    """LAB7DATA inside a container, /opt/l7esp/data otherwise."""
    return Path(environ.get("LAB7DATA", "/opt/l7esp/data"))


def default_database_url() -> str:
    """DATABASE_URL, then L7ESP_DATABASE_URL, then libpq's PG* variables."""
    return environ.get("DATABASE_URL") or environ.get("L7ESP_DATABASE_URL") or ""


def database_url_source(database_url: str) -> str:
    """Name where the connection settings came from, without echoing them.

    A failed connection has to say which configuration to go and look at, but
    the URL itself routinely carries a password, so only its origin is named.
    """
    if not database_url:
        return "the libpq environment variables (PGHOST, PGDATABASE, ...) or their defaults"
    if database_url == environ.get("DATABASE_URL"):
        return "$DATABASE_URL"
    if database_url == environ.get("L7ESP_DATABASE_URL"):
        return "$L7ESP_DATABASE_URL"
    return "--database-url"


# --- Business logic ---


def canonical(path: Path) -> Path:
    """Collapse redundant separators and up-level references in a path.

    Applied to both sides of every disk-against-database comparison so the two
    are normalized the same way. Deliberately does not resolve symlinks: that
    reads the filesystem, and would answer differently for a path the database
    recorded than for the same path found on disk.
    """
    return Path(normpath(str(path)))


def require_data_volume(data_dir: Path) -> None:
    """Refuse to run unless data_dir really is an L7|ESP data volume.

    Catches a wrong or empty --data-dir.
    """
    if (data_dir / SITE_ID_FILE).is_file():
        return
    raise UsageError(
        "{0} does not look like an L7|ESP data volume: no {1}.\n"
        "L7|ESP writes that file when it initializes the database, so every\n"
        "restored volume has one. Inside an L7|ESP container the default comes\n"
        "from LAB7DATA and needs no flag; elsewhere point --data-dir at the\n"
        "directory that holds files/ and pipeline/.".format(data_dir, SITE_ID_FILE)
    )


def walk_files(files_dir: Path) -> Iterator[Path]:
    """Yield every file under the files/ directory, symlinks included.

    A missing directory yields nothing rather than raising: an install that has
    never taken an upload has no files/, and that is not an error. Symlinks are
    reported by name but never followed, so a link out of the volume or back
    into it cannot send the walk somewhere else or around a loop.

    Each directory is closed before descending into its children, so the walk
    holds one handle at a time rather than one per level.
    """
    if not files_dir.is_dir():
        return
    subdirs: List[Path] = []
    try:
        with scandir(files_dir) as entries:
            for entry in entries:
                if entry.is_symlink() or not entry.is_dir(follow_symlinks=False):
                    yield Path(entry.path)
                else:
                    subdirs.append(Path(entry.path))
    except OSError as exc:
        raise CheckAborted(
            "could not read {0}: {1}.\n"
            "A partial walk would under-report orphans while looking complete, "
            "so nothing is reported.".format(files_dir, exc.strerror or exc)
        )
    for subdir in subdirs:
        for path in walk_files(subdir):
            yield path


def uuid_of(path: Path) -> Optional[str]:
    """Return the uuid suffix of a file name, or None if it has none.

    Lower-cased to match PostgreSQL's rendering of a uuid column, so a name
    written in upper case still reconciles against its record.
    """
    match = UUID_SUFFIX.search(path.name)
    return match.group(1).lower() if match else None


def mtime_of(path: Path) -> Optional[str]:
    """The entry's own modification time as an ISO 8601 UTC string.

    Returns None if the entry is gone, which happens when a file is deleted
    between the walk and this call; it is no longer an orphan, so its row is
    dropped rather than aborting the whole report. Does not follow symlinks:
    the question is what sits on this volume, not what it points at.
    """
    try:
        return datetime.fromtimestamp(lstat(path).st_mtime, tz=timezone.utc).isoformat()
    except OSError:
        return None


@contextmanager
def read_only_connection(database_url: str) -> Iterator[Any]:
    """A single repeatable-read, read-only transaction for one command's queries.

    One connection, so both queries of a command see the same snapshot and the
    two reports cannot disagree about a row written between them. Read-only and
    repeatable-read are set on the session, so the guarantee that this tool
    changes nothing is enforced by the server rather than promised by the code.
    """
    try:
        conn = connect(database_url)
    except PsycopgError as exc:
        raise CheckAborted(
            "could not connect to the L7|ESP database, so nothing was checked.\n"
            "{0}\n"
            "Connection settings came from {1}.".format(str(exc).strip(), database_url_source(database_url))
        )
    try:
        conn.set_session(isolation_level=ISOLATION_LEVEL_REPEATABLE_READ, readonly=True)
        yield conn
    finally:
        conn.close()


def fetch(conn: Any, sql: str) -> List[tuple]:
    """Run one query inside the caller's read-only transaction."""
    try:
        with conn.cursor() as cur:
            cur.execute(sql)
            return cur.fetchall()
    except PsycopgError as exc:
        raise CheckAborted(
            "could not query the L7|ESP database, so nothing was checked.\n"
            "{0}\n"
            "This usually means the schema is not the one this tool expects.".format(str(exc).strip())
        )


def local_path(file_url: Optional[str]) -> Optional[Path]:
    """Strip the file:// scheme from a stored file URL.

    Returns None when the database recorded no path at all. That happens for a
    pipeline instance carrying pi_dir as a JSON null, which the `meta ? 'pi_dir'`
    test in PIPELINE_RUNS_SQL does not exclude, because that operator only asks
    whether the key is present.
    """
    if not file_url:
        return None
    prefix = "file://"
    stripped = file_url[len(prefix) :] if file_url.startswith(prefix) else file_url
    return canonical(Path(stripped))


def recorded_paths(records: Iterable[tuple]) -> List[Path]:
    """Every path a record set actually carries, skipping the pathless ones."""
    found = (local_path(record[2]) for record in records)
    return [path for path in found if path is not None]


def orphan_files(files_dir: Path, known_uuids: Set[str]) -> List[Row]:
    """Files on disk whose uuid is not in the database: (uuid, path, mtime).

    Matched on the uuid in the file name, not on the path, so this report is
    unaffected by where the volume is mounted. A file whose name carries no
    uuid is not something L7|ESP wrote and is left alone.
    """
    rows: List[Row] = []
    for path in walk_files(files_dir):
        uuid = uuid_of(path)
        if uuid is None or uuid in known_uuids:
            continue
        modified = mtime_of(path)
        if modified is not None:
            rows.append((uuid, str(path), modified))
    return rows


def orphan_pipeline_dirs(pipeline_dir: Path, known_dirs: Set[Path]) -> List[Row]:
    """Run directories on disk not referenced by any pipeline instance.

    A missing directory yields nothing rather than raising: an install that has
    never run a pipeline has no pipeline/, and that is not an error.
    """
    rows: List[Row] = []
    if not pipeline_dir.is_dir():
        return rows
    try:
        with scandir(pipeline_dir) as entries:
            candidates = [Path(entry.path) for entry in entries if entry.is_dir(follow_symlinks=False)]
    except OSError as exc:
        raise CheckAborted(
            "could not read {0}: {1}.\n"
            "A partial listing would under-report orphans while looking "
            "complete, so nothing is reported.".format(pipeline_dir, exc.strerror or exc)
        )
    for path in candidates:
        if canonical(path) in known_dirs:
            continue
        modified = mtime_of(path)
        if modified is not None:
            rows.append(("", str(path), modified))
    return rows


def in_scope(path: Path, data_dir: Path, scope: str) -> bool:
    """Whether a recorded path sits in the subtree --scope asked for.

    Scope selects a subtree of the data directory, files/ or pipeline/, not a
    record type: a lab7_file record's path can be under either one.
    """
    if scope == "all":
        return True
    return canonical(path).is_relative_to(canonical(data_dir / scope))


def dangling_records(
    records: Iterable[tuple],
    include_archived: bool,
    data_dir: Path,
    scope: str,
) -> DanglingReport:
    """Records whose recorded path does not exist on the volume.

    Out-of-scope records are dropped before the existence test rather than
    after, so --scope files does not stat every pipeline path only to discard
    the answer. On a network filesystem each of those stats is a round trip.

    A record with no path recorded cannot be missing from the volume, so it is
    counted rather than reported.
    """
    rows: List[Row] = []
    pathless = 0
    for uuid, name, location, archived in records:
        if archived and not include_archived:
            continue
        path = local_path(location)
        if path is None:
            pathless += 1
            continue
        if not in_scope(path, data_dir, scope):
            continue
        if not path.exists():
            rows.append((uuid, name or "", str(path)))
    return DanglingReport(rows, pathless)


def tsv_field(value: str) -> str:
    """Escape the characters that would break TSV column or row framing.

    A file name may legally contain a tab or a newline, which would otherwise
    silently shift every later column or split one row into two.
    """
    return value.replace("\\", "\\\\").replace("\t", "\\t").replace("\r", "\\r").replace("\n", "\\n")


def render(rows: List[Row], headers: Row, output: Optional[Path]) -> None:
    """Write rows as TSV to output, or to stdout when output is None."""
    lines = ["\t".join(headers)]
    lines += ["\t".join(tsv_field(field) for field in row) for row in rows]
    if output is None:
        echo("\n".join(lines))
        return
    if not output.parent.is_dir():
        raise UsageError("cannot write {0}: {1} is not a directory.".format(output, output.parent))
    output.write_text("\n".join(lines) + "\n")
    echo("wrote {0} rows to {1}".format(len(rows), output), err=True)


def note_unchecked(count: int, reason: str) -> None:
    """Report records that were skipped, so a clean report is not overread."""
    if count:
        echo("note: {0} records {1} and were not checked".format(count, reason), err=True)


def orphans(
    data_dir: Path,
    database_url: str,
    scope: str,
    output: Optional[Path],
) -> int:
    """Report files and run directories on disk with no database record."""
    require_data_volume(data_dir)
    rows: List[Row] = []
    with read_only_connection(database_url) as conn:
        if scope != "pipeline":
            known_uuids = {row[0] for row in fetch(conn, FILE_RECORDS_SQL)}
            rows += orphan_files(data_dir / "files", known_uuids)
        if scope != "files":
            known_dirs = set(recorded_paths(fetch(conn, PIPELINE_RUNS_SQL)))
            rows += orphan_pipeline_dirs(data_dir / "pipeline", known_dirs)
    render(rows, ("uuid", "path", "modified"), output)
    return len(rows)


def dangling(
    data_dir: Path,
    database_url: str,
    scope: str,
    include_archived: bool,
    output: Optional[Path],
) -> int:
    """Report database records whose file or run directory is missing.

    Both stores are queried whichever scope is asked for, because the table a
    record came from does not say which subtree its path is under: a lab7_file
    record can point under pipeline/.
    """
    require_data_volume(data_dir)
    with read_only_connection(database_url) as conn:
        records = fetch(conn, FILE_RECORDS_SQL) + fetch(conn, PIPELINE_RUNS_SQL)
    report = dangling_records(records, include_archived, data_dir, scope)
    note_unchecked(report.pathless, "have no path recorded")
    render(report.rows, ("uuid", "name", "missing path"), output)
    return len(report.rows)


# --- CLI ---

database_url_option = option(
    "--database-url",
    default=default_database_url,
    show_default="$DATABASE_URL, $L7ESP_DATABASE_URL, or libpq PG* variables",
    help="PostgreSQL connection URL, e.g. postgresql://user:pass@host:5432/l7esp",
)
data_dir_option = option(
    "--data-dir",
    type=PathType(file_okay=False, exists=True, path_type=Path),
    default=default_data_dir,
    show_default="$LAB7DATA or /opt/l7esp/data",
    help="L7|ESP data directory containing files/ and pipeline/",
)
scope_option = option(
    "--scope",
    type=Choice(["all", "files", "pipeline"]),
    default="all",
    show_default=True,
    help="Restrict to uploaded files (files/), pipeline runs (pipeline/), or both",
)
output_option = option(
    "--output",
    type=PathType(dir_okay=False, writable=True, path_type=Path),
    default=None,
    help="Write a TSV report to this file instead of stdout",
)


@group(help=__doc__)
def cli() -> None:
    pass


@cli.command(name="orphans", help="Files and pipeline run directories on disk with no database record.")
@database_url_option
@data_dir_option
@scope_option
@output_option
def cli_orphans(
    database_url: str,
    data_dir: Path,
    scope: str,
    output: Optional[Path],
) -> None:
    sys_exit(1 if orphans(data_dir, database_url, scope, output) else 0)


@cli.command(name="dangling", help="Database records whose file or pipeline run directory is missing.")
@database_url_option
@data_dir_option
@scope_option
@option("--include-archived", is_flag=True, help="Also check records L7|ESP has soft-deleted")
@output_option
def cli_dangling(
    database_url: str,
    data_dir: Path,
    scope: str,
    include_archived: bool,
    output: Optional[Path],
) -> None:
    sys_exit(1 if dangling(data_dir, database_url, scope, include_archived, output) else 0)


if __name__ == "__main__":
    cli()

Disaster Recovery

Definitions

• Hot standby is a server that will automatically failover if the primary server fails.

• Warm standby is a server that will not automatically failover and that may not have all the latest transactions.

• Cold standby is a spare machine that needs to be turned on, backup restored (or even full staging of the machine).

Scenarios

Application failure

In the event of an ESP application server failure:

• Hot standby: Two ESP application servers behind a load balancer.

  Note

  User-uploaded files and pipeline scripts/log files that are referenced by the database are written as physical files to disk and are not stored inside the database as blobs for a number of reasons, such as performance. You should take care to mount these directories to a networked storage solution, such as an AWS EFS filesystem.

• Warm standby: Alternatively, you may cut traffic to another ESP application server of the same version, and sync the files in the ESP data volume using an out-of-band process, such as scheduled rsync. Using physical disks vs networked storage will increase file system performance and may reduce cost, but the file synchronization process will likely be eventually-consistent in nature.

• Cold standby: For this scenario, in the event of a failure, you can quickly bootstrap a new ESP application server either by installing a tarball on a fresh Linux server. Alternatively, if you create an image (e.g. AWS AMI) for an installed server, you can create a new VM from this image or even automate the process by using an AWS ASG with the correct policy and health checks.

Database failure

In the event of a PostgreSQL database server failure:

• Hot standby: The main use case for a hot standby is load balancing. You would use this to reduce to load on the database master server by delegating requests to one of more standby servers. To configure this, you must increase wal_level to hot_standby on the master database server and set hot_standby to on at the standby database servers. At a high level, most “clustered” PostgreSQL configurations can be considered hot standby, such as using more modern streaming replication modes.

• Warm standby: You can transfer a PITR backup to a standby database server and set it to always run an endless recovery process using WAL logs from the master database server. In this configuration, the standby database server is not accepting queries and sharing the load, but can be made available in the event of a failure. To configure this, you must specify wal_level=replica; archive_mode=on on the master database server and set standby_mode to on at the standby database server(s). When using a hosted service such as AWS RDS, you can simply enable the “Multi-AZ deployment” option when provisioning your database server.

• Cold standby: In this failure scenario, you would be configuring a new database server and restoring from backup. In AWS RDS, this would be equivalent to restoring a database instance from a snapshot.

Datacenter failure

In the event of a catastrophic datacenter (or regional, in cloud terms) failure:

• Hot standby: To achieve this scenario, you must have duplicate infrastructure running in another datacenter or region, with database and file synchronization between these sites. There is a cost vs risk tradeoff to be made as this can cost up to double the price, whereas the likelihood of this event may not mandate automated failover at this level.

• Warm standby: This is the same as a hot standby from a cost perspective as you would have duplicate infrastructure running, however you are failing over to the standby site by manually altering DNS records in the event of a failure.

• Cold standby: In this failure scenario, you would have a spare machine or the ability to provision one, in another network. The ESP application would need to be installed and backups restored to make it functional, and DNS updated to direct traffic here afterwards. In AWS, you could spin up a copy of the ESP infrastructure in another region using existing IaC in the unlikely event that this scenario ever occurs.
